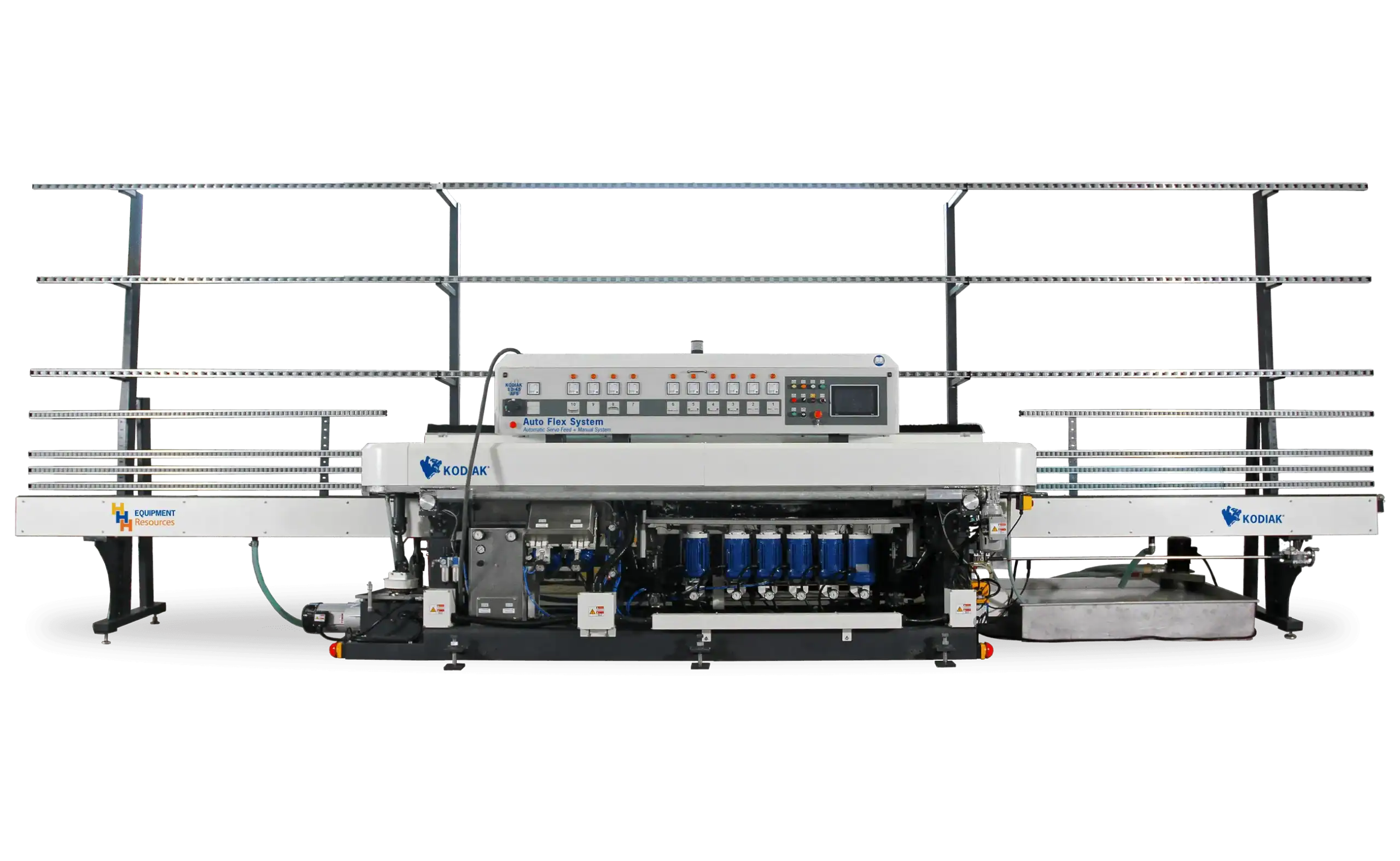

KODIAK® 10-45 Flat Polishing & Mitering Machine
The KODIAK® 10-45 Glass Polishing and Mitering Machine features a variable angle of up to 45°, making it the optimal solution for polishing and mitering large, flat surfaces at competitive production speeds. Heavy-duty spindles and frame construction are designed for continuous operation. Learn more about KODIAK® edging equipment here.
Features- Track Elements: Cast aluminum caterpillar track system and gears provide high precision and long life.
- Electrical Control: CE/UL-certified machine with trusted, quality performance.
- Display Screen: Easily view glass thickness, machine speed, lubrication time and more on the 10" screen.
- Automatic Lubrication: Centralized oiling device makes it easy to keep the machine lubricated.
- Industry-leading warranty
- Track Elements: Cast aluminum caterpillar track system and gears provide high precision and long life.
- Electrical Control: CE/UL-certified machine with trusted, quality performance.
- Display Screen: Easily view glass thickness, machine speed, lubrication time and more on the 10" screen.
- Automatic Lubrication: Centralized oiling device makes it easy to keep the machine lubricated.
- Industry-leading warranty
SpecificationsGlass Thickness 3 - 30 mm. (60 Opt.) Weight 5,800 kg Working Height 825 mm. Machine Dimensions 8,600 x 1,400 x 3,000 mm. Power 28 kW Conveyor Capacity 1000 kg (100 - 250kg/m) Speed 0 - 5 m/min. Amps (Under 480V power) 58.34A
| Glass Thickness | 3 - 30 mm. (60 Opt.) |
|---|---|
| Weight | 5,800 kg |
| Working Height | 825 mm. |
| Machine Dimensions | 8,600 x 1,400 x 3,000 mm. |
| Power | 28 kW |
| Conveyor Capacity | 1000 kg (100 - 250kg/m) |
| Speed | 0 - 5 m/min. |
| Amps (Under 480V power) | 58.34A |
