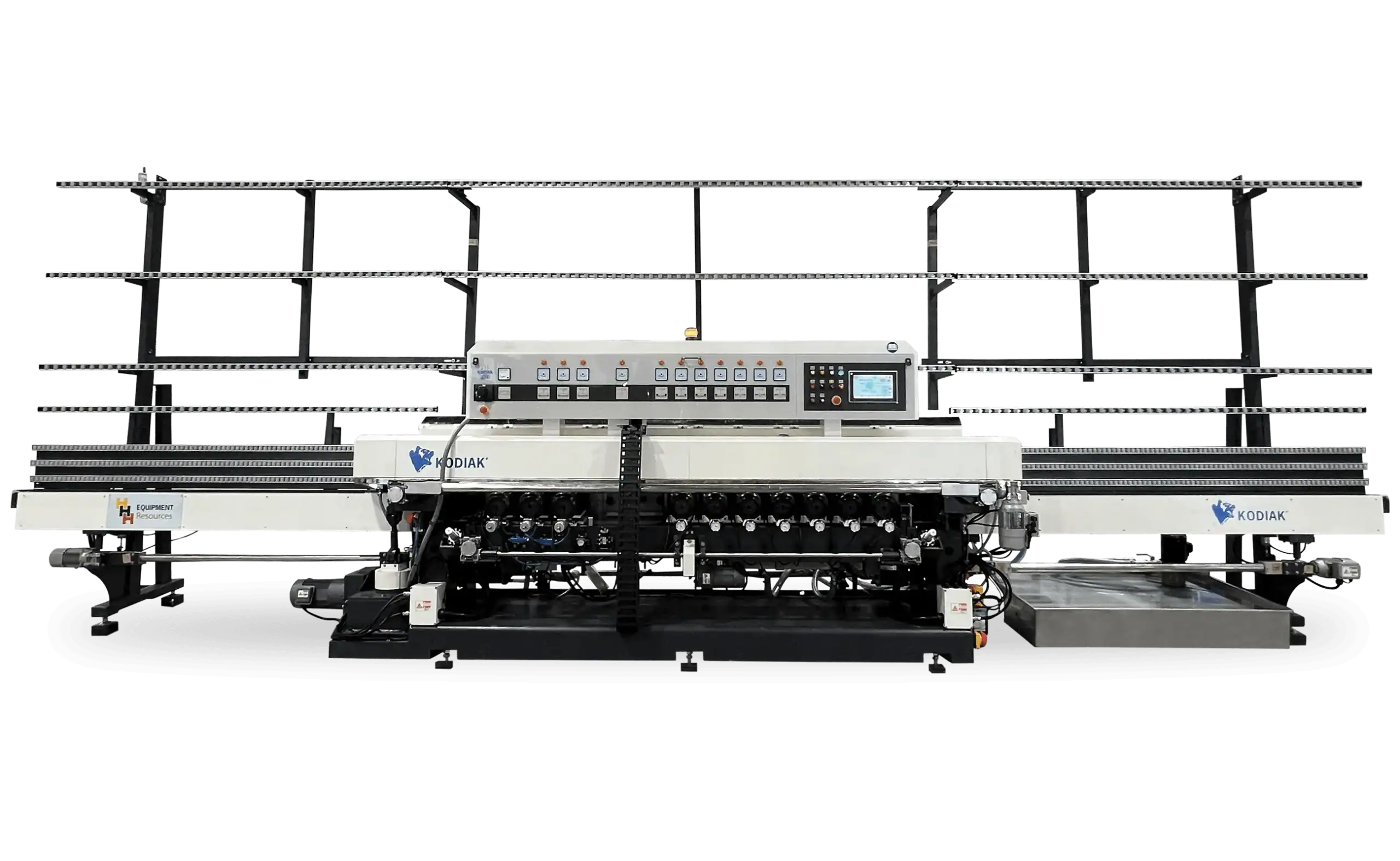

KODIAK® 371 Glass Beveling Machine
The KODIAK® 371 Glass Beveling Machine is an 11 spindle beveling machine for glass and mirror bevels with a variable angle up to 45°. This glass beveling machine includes 3 felt wheels, 7 grinding/smoothing wheels and 1 peripheral edging wheel for any glass application.
About KODIAK®
Available exclusively from HHH Equipment Resources, KODIAK® is a line of heavy-duty edging, polishing, mitering and drilling machines designed specifically for North American fabricator needs. With heavy-duty spindles and frame construction, KODIAK® machines are designed for continuous operation. All KODIAK® machines are backed by an industry-leading 18-month mechanical, 12-month electrical warranty and 24/7 U.S.-based technical support. KODIAK® machines offer exceptional edge quality, competitive production speeds and a proven track design to help redefine performance.
Features- Track Elements: Cast aluminum caterpillar track system and gears provide high precision and long life.
- Electrical Control: CE/UL-certified machine with trusted, quality performance.
- Display Screen: Easily view glass thickness, machine speed, lubrication time and more on the 10" screen.
- Automatic Lubrication: Centralized oiling device makes it easy to keep the machine lubricated.
- Industry-leading warranty
- Track Elements: Cast aluminum caterpillar track system and gears provide high precision and long life.
- Electrical Control: CE/UL-certified machine with trusted, quality performance.
- Display Screen: Easily view glass thickness, machine speed, lubrication time and more on the 10" screen.
- Automatic Lubrication: Centralized oiling device makes it easy to keep the machine lubricated.
- Industry-leading warranty
SpecificationsGlass Thickness 3 - 20 mm. Working Height 850 mm. Machine Dimensions 8,750 x 2,050 x 2,835 mm. Conveyor Capacity 1000 kg (100 - 250kg/m) Speed 0 - 5 m/min. Weight 6,050 kg Power 23 kW Min Glass Size 60 x 80 mm. Bevel Width 60 mm.
| Glass Thickness | 3 - 20 mm. |
|---|---|
| Working Height | 850 mm. |
| Machine Dimensions | 8,750 x 2,050 x 2,835 mm. |
| Conveyor Capacity | 1000 kg (100 - 250kg/m) |
| Speed | 0 - 5 m/min. |
| Weight | 6,050 kg |
| Power | 23 kW |
| Min Glass Size | 60 x 80 mm. |
| Bevel Width | 60 mm. |
Watch Our Products in Action
Contact Us
Considering adding fabrication equipment to grow your glass business? In addition to the glass fabrication equipment listed above, HHH Equipment Resources offers U.S.-based technical service and support, based out of our East and West Coast service centers. HHH Equipment Resources offers full parts stocking, installation and 24/7 support that reduces downtime and maximizes the productivity of your glass fabrication operation.
