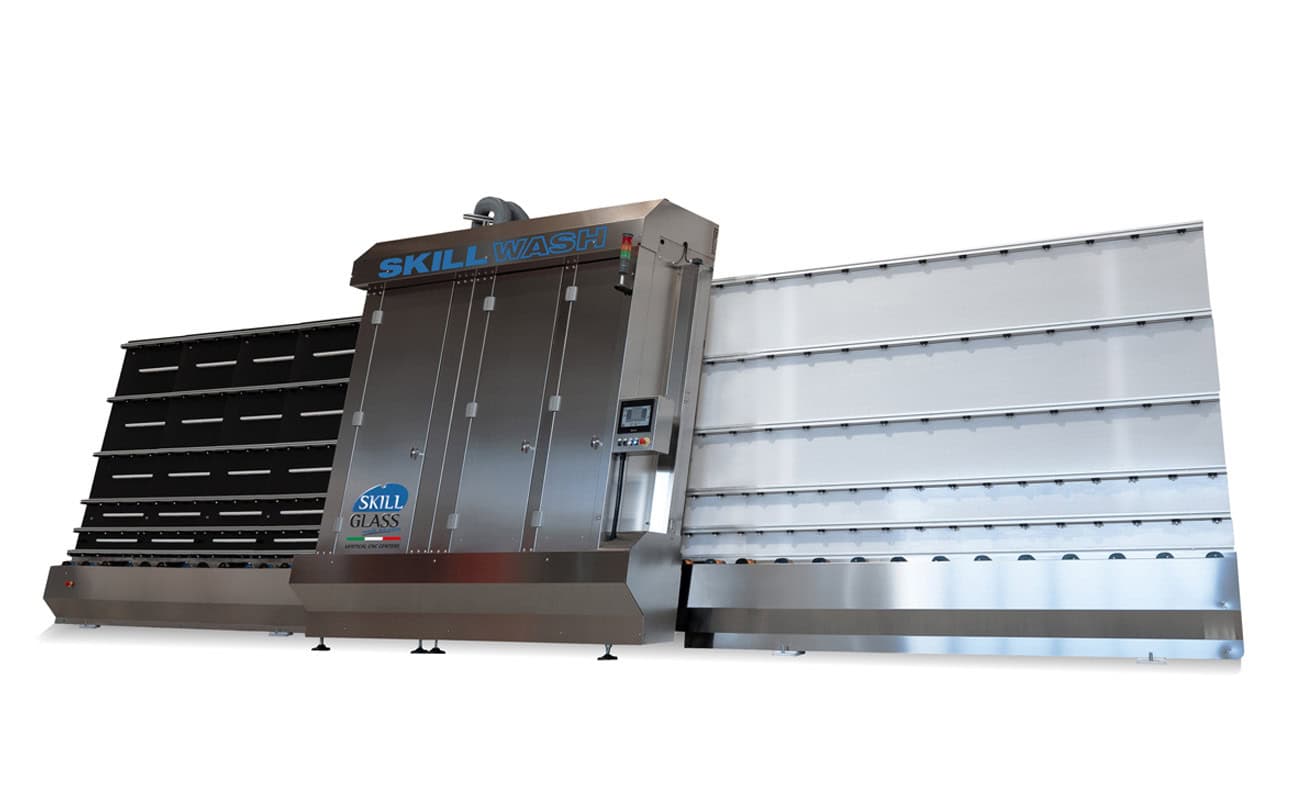

SKILL Vertical Washing and Drying Machine
The SKILL vertical washing machine is a vertical washing machine for the automatic washing and drying of straight and shaped flat glass sheets. The machine consists of 3 sections: a washing section composed of 4 brushes (2 pairs), the final drying section, and an inspection exit area equipped with lamps.
The machining can perform the following operations:

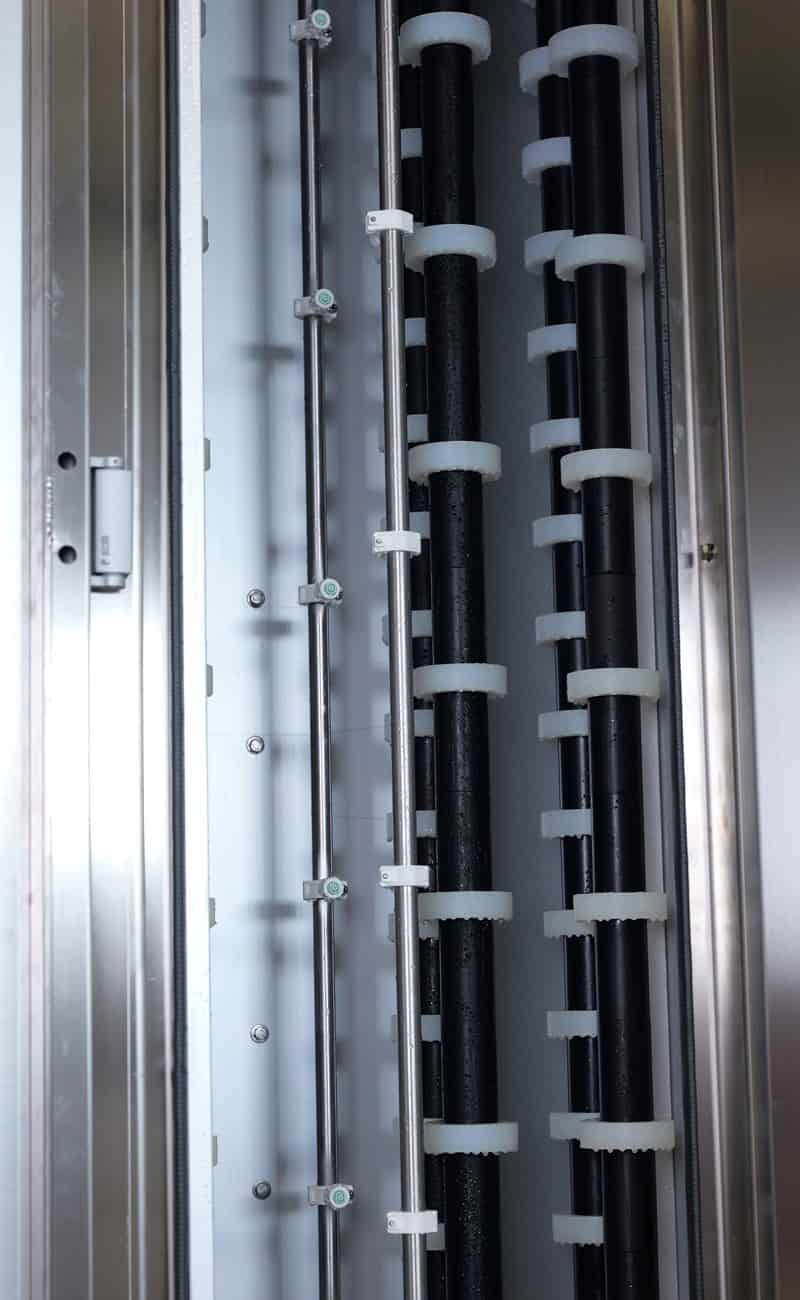

WASHING: is carried out using brushes with 180mm diameter, whose drive motor is located in the upper part of the cabin and therefore out of the water.
DRYING: by means of a high-pressure blower, a complete and fast drying of the slabs is guaranteed.
Features- Stainless steel machine body

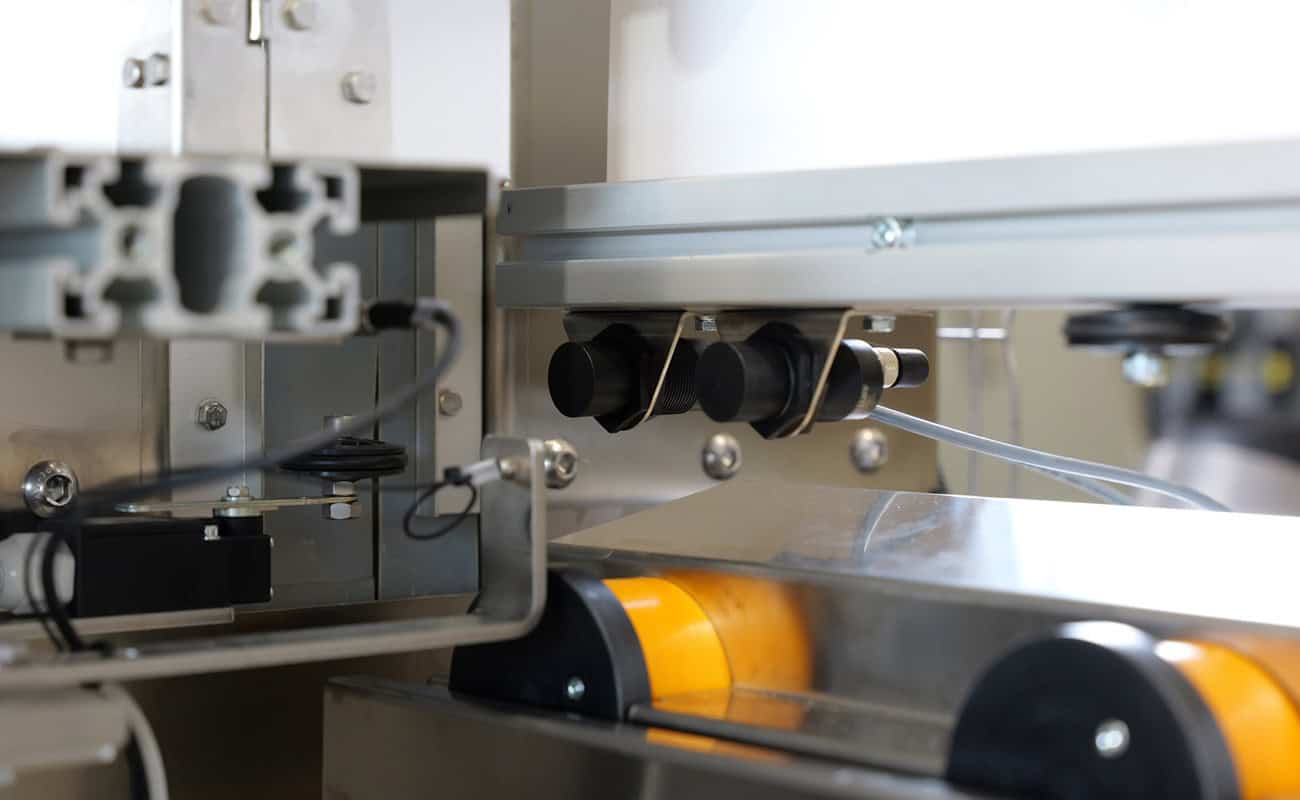

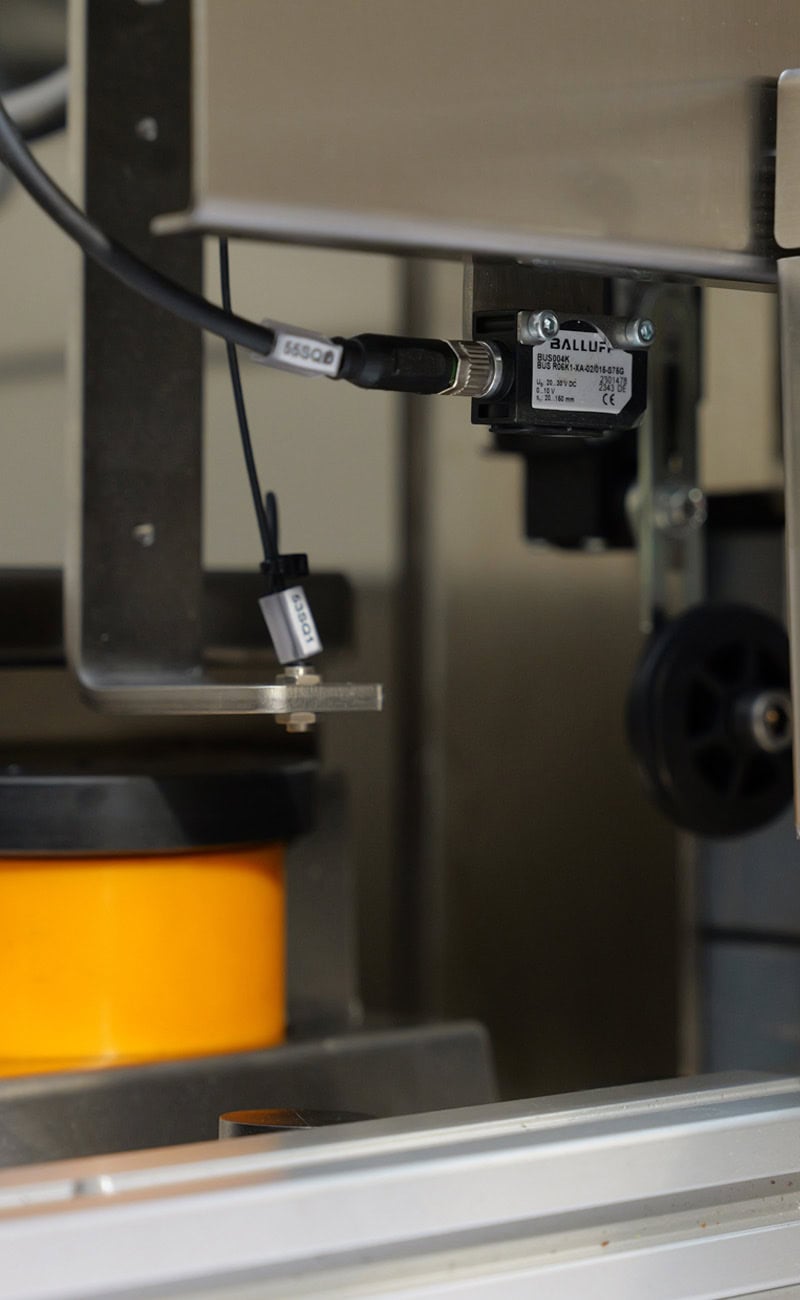

- Automatic thickness and coating detection
- Front doors for easy maintenance
- High-pressure fan located inside noise-reduction box
- Stainless steel machine body
- Automatic thickness and coating detection
- Front doors for easy maintenance
- High-pressure fan located inside noise-reduction box
SpecificationsGlass Thickness 4 - 20 mm. (0.16 - 0.79 in.) Min Glass Size 600 X 300 mm. (23.6 X 11.8 in.) Max Glass Size 3,500 X 2,500 mm. (138 X 98.4 in.)
| Glass Thickness | 4 - 20 mm. (0.16 - 0.79 in.) |
|---|---|
| Min Glass Size | 600 X 300 mm. (23.6 X 11.8 in.) |
| Max Glass Size | 3,500 X 2,500 mm. (138 X 98.4 in.) |
