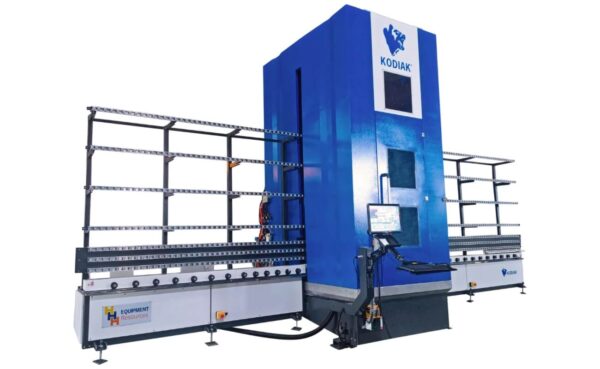

KODIAK® 3025V Drill Mill
The KODIAK® 3025V Drill Mill is specifically designed for milling, drilling and counter-sinking, creating holes, cutouts, hinges, and notches for door fittings and more. It has two processing modes for glass milling and double sided drilling.
About KODIAK®
Available exclusively from HHH Equipment Resources, KODIAK® is a line of heavy-duty edging, polishing, mitering and drilling machines designed specifically for North American fabricator needs. With heavy-duty spindles and frame construction, KODIAK® machines are designed for continuous operation. All KODIAK® machines are backed by an industry-leading 18-month mechanical, 12-month electrical warranty and 24/7 U.S.-based technical support. KODIAK® machines offer exceptional edge quality, competitive production speeds and a proven track design to help redefine performance.
Features- 19" display screen
- External flush cooling system with internal sprinkler at spindle
- DXF importable files and save to machine
- Glass loaded w/ feeding rod, held rigid with vacuum clamp set
- CE/UL certification for electrical components
- 19" display screen
- External flush cooling system with internal sprinkler at spindle
- DXF importable files and save to machine
- Glass loaded w/ feeding rod, held rigid with vacuum clamp set
- CE/UL certification for electrical components
SpecificationsGlass Thickness 5 - 12 mm. Min Glass Size 800 X 400 mm. Max Glass Size 3,000 X 2,500 mm. Working Height 2,200 mm. Machine Dimensions 7,450 X 2,450 X 3,785 mm. Power 12 kW (16.1 HP) Power Supply 480V, 3-phase Water Consumption 13 gal/min. (50L/min.) Drill Hole Size Range 4 - 50 mm. Milling Range 200 X 2,200 mm. Front Spindle Motor 10,000 RPM Rear Spindle Motor 3,600 RPM
| Glass Thickness | 5 - 12 mm. |
|---|---|
| Min Glass Size | 800 X 400 mm. |
| Max Glass Size | 3,000 X 2,500 mm. |
| Working Height | 2,200 mm. |
| Machine Dimensions | 7,450 X 2,450 X 3,785 mm. |
| Power | 12 kW (16.1 HP) |
| Power Supply | 480V, 3-phase |
| Water Consumption | 13 gal/min. (50L/min.) |
| Drill Hole Size Range | 4 - 50 mm. |
| Milling Range | 200 X 2,200 mm. |
| Front Spindle Motor | 10,000 RPM |
| Rear Spindle Motor | 3,600 RPM |
