SKILL Vertical Glass Drilling Milling Machine Drill 101FF
SKILL Vertical Glass Drilling Milling Machine Drill 101FF is a numeric control six-axis drilling machine designed to produce holes and notches, create polished or rough openings, and chamfering on straight, flat sheet glass 3-20 mm. thick. This drilling milling machine is composed of six interpolated axes (X, XG, Y, V, Z and W) and two electrospindles positioned opposite one another to create a dead-center system that drills perfect holes.
Features- Automatic double tool change for 8+8 (0R 12+12) positions
- Greasing System
- Teleassistance
- Uptake and handling system for glass with vacuum-operated belts
- 2 4 kW (5,3 HP) electrocospindles with rotation speeds of up to 10.000 rpm and internal tool cooling
- 6-axis numerical control
- Automatic double tool change for 8+8 (0R 12+12) positions
- Greasing System
- Teleassistance
- Uptake and handling system for glass with vacuum-operated belts
- 2 4 kW (5,3 HP) electrocospindles with rotation speeds of up to 10.000 rpm and internal tool cooling
- 6-axis numerical control
SpecificationsMachine Dimensions 8,540 - 14,400 X 2,800 X 3,300 - 4,550 mm. (336.2 - 566.9 X 110.2 X 130 - 177.2 in.) Min Glass Size 600 X 300 mm. (23.6 X 11.8 in.) Max Glass Size 3,000 - 6,000 X 2,000 - 3,300 mm. (118 - 236 X 78.7 - 130 in.) Glass Thickness 3 - 20 mm. (0.1 - 0.8 in.) Working Height 600 mm. (23.6 in.) Power 20 kW (27 HP)
| Machine Dimensions | 8,540 - 14,400 X 2,800 X 3,300 - 4,550 mm. (336.2 - 566.9 X 110.2 X 130 - 177.2 in.) |
|---|---|
| Min Glass Size | 600 X 300 mm. (23.6 X 11.8 in.) |
| Max Glass Size | 3,000 - 6,000 X 2,000 - 3,300 mm. (118 - 236 X 78.7 - 130 in.) |
| Glass Thickness | 3 - 20 mm. (0.1 - 0.8 in.) |
| Working Height | 600 mm. (23.6 in.) |
| Power | 20 kW (27 HP) |

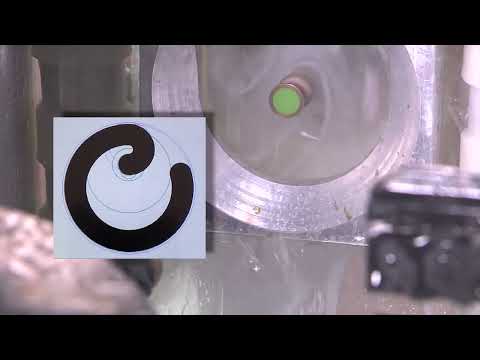

Watch Our Products in Action
