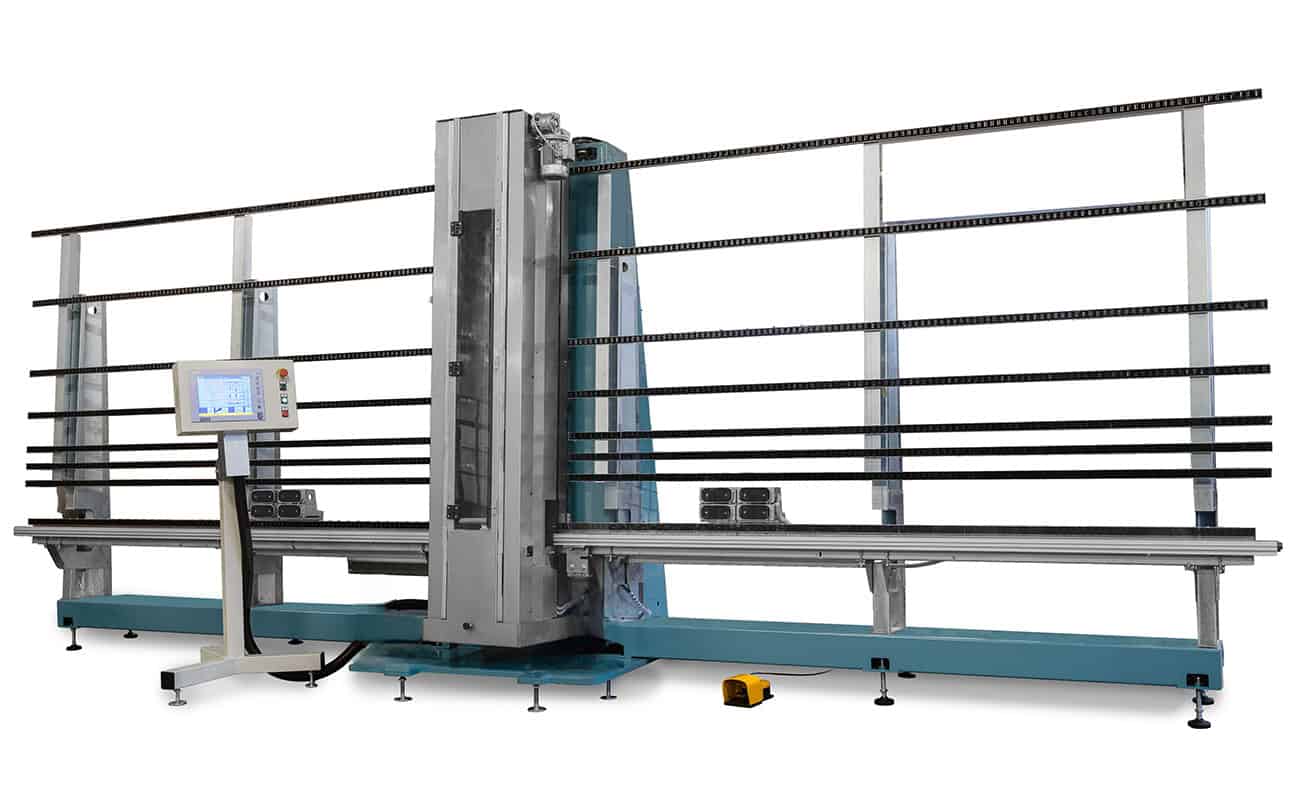

Zafferani AZV Mill 1600 ULTRA Vertical Glass Drilling Milling Machine
The Zafferani AZV Mill 1600 ULTRA glass drilling milling machine from HHH Equipment Resources is a high-quality, Italian-built vertical CNC designed for milling, drilling and countersinking of flat glass. It is perfect for drilling precision notches, hinges and holes, and is capable of processing all standard sizes.
Features- New vacuum cup glass handling system – no clamp involved
- Spindle moves on Y axis, glass moves along X, eliminating clamp
- ISO 30 cone tool holder
- Programmable directly on machine or from separate PC
- Ability to import shapes or complete programs in DXF format
- Newly added functions: Pulsation, Anti-vibration, Engraving, Oscillation, Emptying, and Polishing
- New vacuum cup glass handling system – no clamp involved
- Spindle moves on Y axis, glass moves along X, eliminating clamp
- ISO 30 cone tool holder
- Programmable directly on machine or from separate PC
- Ability to import shapes or complete programs in DXF format
- Newly added functions: Pulsation, Anti-vibration, Engraving, Oscillation, Emptying, and Polishing
SpecificationsMin Glass Size 600 X 300 mm. (23.6 X 11.8 in.) Glass Thickness 4 - 20 mm. (0.16 - 0.79 in.) Weight 2,150 kg (4,740 lbs.) Working Area Y 1,650 mm. (65 in.) Working Area X No limit Power 8.5 kW (11.4 HP)
| Min Glass Size | 600 X 300 mm. (23.6 X 11.8 in.) |
|---|---|
| Glass Thickness | 4 - 20 mm. (0.16 - 0.79 in.) |
| Weight | 2,150 kg (4,740 lbs.) |
| Working Area Y | 1,650 mm. (65 in.) |
| Working Area X | No limit |
| Power | 8.5 kW (11.4 HP) |
