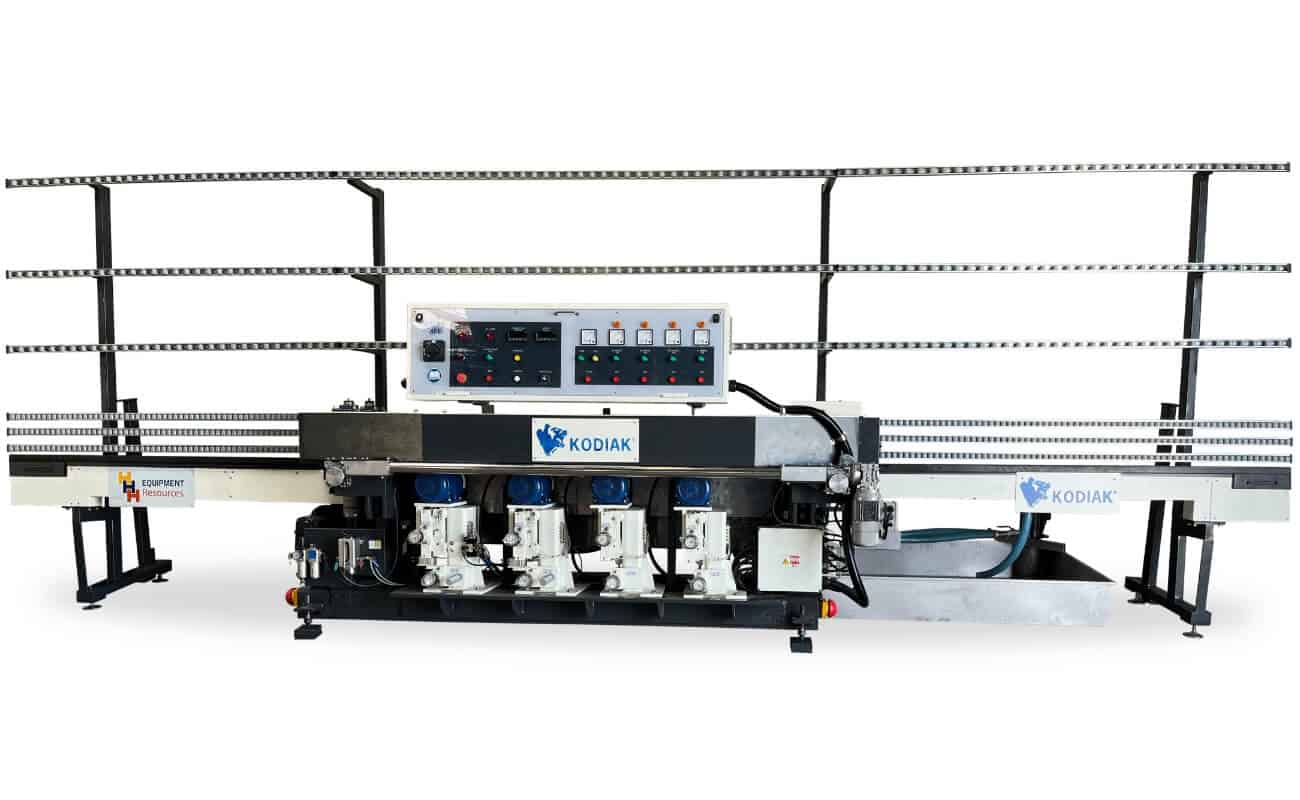

KODIAK® 4PE Pencil Edging Machine
The KODIAK® 4PE Pencil Edging Machine is an automatic straight line pencil edge machine used for the edge grinding and polishing of flat glass. With 2 diamond metal wheels and 2 polishing wheels, this machine processes pencil edges and arrised flat polish with a peripherial wheel trap for glass sheets of varying thickness. This pencil edger is ideal for small shops with low throughput.
About KODIAK®
Available exclusively from HHH Equipment Resources, KODIAK® is a line of heavy-duty edging, polishing, mitering and drilling machines designed specifically for North American fabricator needs. With heavy-duty spindles and frame construction, KODIAK® machines are designed for continuous operation. All KODIAK® machines are backed by an industry-leading 18-month mechanical, 12-month electrical warranty and 24/7 U.S.-based technical support. KODIAK® machines offer exceptional edge quality, competitive production speeds and a proven track design to help redefine performance.
Features- 4 wheels: 2 diamond metal, 2 polishing
- Double chain and FRP structure for stable transfer, high rigidity
- Optional adjustable conveyor guide to compensate for glass grinding
- Backtrack rubber pads coated with replaceable thick rectified rubber
- CE/UL certification for electrical components
- Auto-Lubrication: Centralized oiling device
- 4 wheels: 2 diamond metal, 2 polishing
- Double chain and FRP structure for stable transfer, high rigidity
- Optional adjustable conveyor guide to compensate for glass grinding
- Backtrack rubber pads coated with replaceable thick rectified rubber
- CE/UL certification for electrical components
- Auto-Lubrication: Centralized oiling device
SpecificationsGlass Thickness 3 - 20 mm. Min Glass Size 150 X 150 mm. (5.9 X 5.9 in.) Weight 2,000 kg Working Height 800 mm. Machine Dimensions 6,200 X 1,400 X 2,250 mm. Power 9 kW (12 HP) Power Supply 480V, 3-phase Speed 0.5 - 2.5 m/min.
| Glass Thickness | 3 - 20 mm. |
|---|---|
| Min Glass Size | 150 X 150 mm. (5.9 X 5.9 in.) |
| Weight | 2,000 kg |
| Working Height | 800 mm. |
| Machine Dimensions | 6,200 X 1,400 X 2,250 mm. |
| Power | 9 kW (12 HP) |
| Power Supply | 480V, 3-phase |
| Speed | 0.5 - 2.5 m/min. |
Watch Our Products in Action
Contact Us
Have questions about how Glass Edging and Polishing equipment can benefit your glass fabrication operation? The HHH Equipment technical team is ready to help.
